Installation Course of Benz V Air Suspension
The official website of airbft air suspension shares: Installation Course of Benz V Air Suspension. This version is developed for comfort, which can perfectly provide users with a comfortable driving experience.
Apple or Android can be controlled through APP.
Low
Middle height
High
Indoor wired remote control.
Front air suspension shock absorber.
Rear air suspension.
The aluminum alloy air tank is fixed by 4 self tapping screws,The air tank is installed at the bottom of the left rear chassis of the car.
Automatic drain separator,Note that the check valve should be installed between the air tank and the filter, with the arrow pointing towards the air tank.
The quiet air compressor is installed at the bottom of the right rear chassis of the car. It has a bracket fixed on the chassis.
Please do not remove the spring shock absorber device of the air compressor, which can avoid vibration.
The control system is installed in the right rear trim panel in the car. You need to open the trim panel to see it.
Man, have you seen that there is a fixed bolt hole to fix the controller, and the pressure sensor of the gas tank can be installed here. Remember to apply a layer of glue on the thread.
There is also a fixing bolt hole to fix the controller.
This position is perfect, because the relay can be fixed just below the controller. It is very suitable to fix the relay here, because it saves the length of the harness.
Did you see? There is also a fuse box for ACC power supply, which is perfect. Install ACC power supply directly here.
Then fix the relay.
The negative harness can also be directly fixed with the vehicle body, which perfectly solves the problem of negative harness.
The air pipe, height sensor harness, remote control harness and 12v positive harness are led together from the right rear controller in the vehicle to the right rear chassis position. Through a hole reserved in the original vehicle, they can dig a hole in the rubber ring, and they can be led together from this hole to the right rear chassis air compressor position.

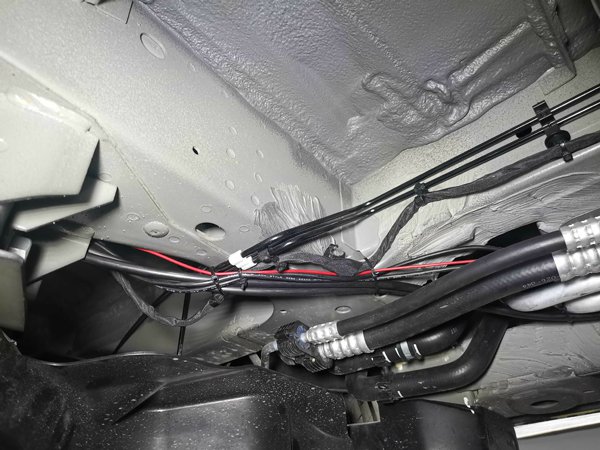

From the bottom of the chassis to the left side of the chassis with the brake oil pipe, the harness air pipe can be led to the front from the left side.
You can fix the air pipe and harness according to the position in the picture.
The 12v positive harness needs to be led to the battery 12v positive connector at the bottom of the right front seat.
The key point is to install the height sensor. This is the location of the next two height sensors.
The key point is to install the height sensor. This is the location of the next two height sensors.

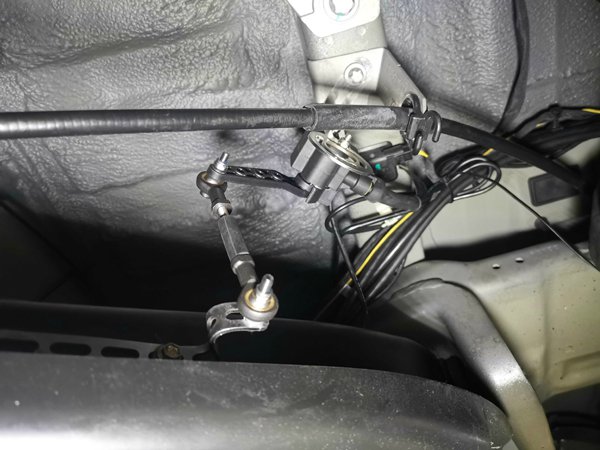

Rear left height sensor.
Rear left height sensor.
Rear left height sensor.
Rear right height sensor.
Rear right height sensor.
Rear right height sensor.
Rear right height sensor.
Rear right height sensor.
Rear right height sensor.
Rear right height sensor.
Front right height sensor.
The air pipe of the front right air suspension shock absorber is fixed together with the brake hose.
Front right height sensor.
Front right height sensor.
Front right height sensor.
Front right height sensor.
