Installation and Use Instructions for Toyota Alphard 40 Series Air Suspension

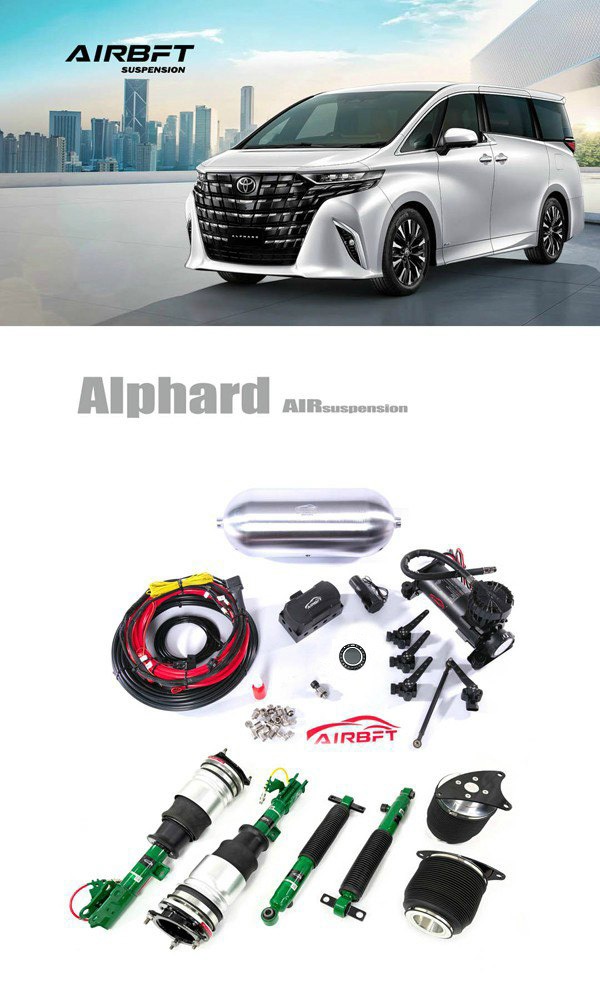

The official website of AIRBFT air suspension shares with you the installation and use instructions for Toyota Alphard 40 series air suspension. It uses Japanese TEIN damping adjustable shock absorbers combined with Land Rover’s same air suspension airbags to improve comfort, increase passability, and solve the problem of underground parking.

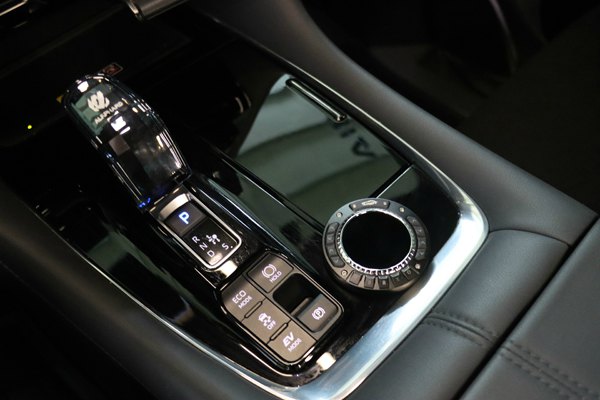

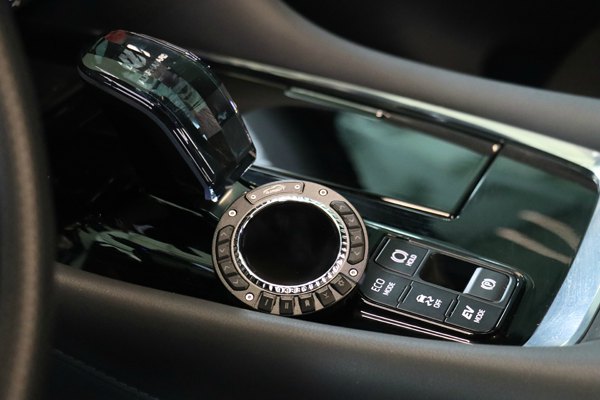

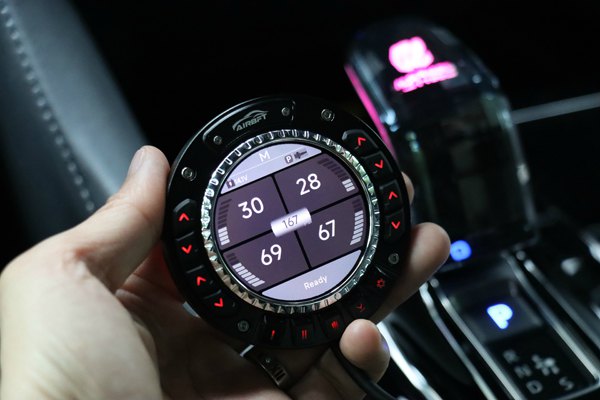

The control system adopts the AIRBFT air suspension dedicated control system, with dual body height detection modes of air pressure and height sensors, and uses American Freescale automotive grade chips for faster and more stable processing speed. The new circular LCD display remote control handle has a wired design to avoid battery explosion safety issues in the car during summer high temperatures. The AIRBFT brand not only considers the practicality of the product, but also the safety of the user. The wireless control is operated through a mobile app for stability and safety.
The height sensor adopts a dedicated installation bracket, which does not require re measurement of dimensions and can be installed directly. If you love hands-on work, you can complete all the work according to the installation instructions.
The trachea is distinguished by four visual colors to avoid confusion and waste of time during the process of threading.

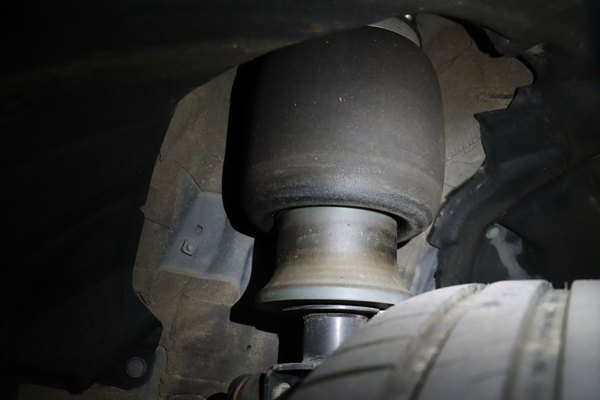

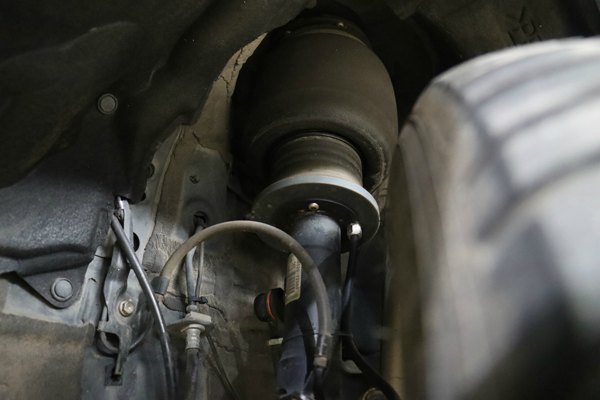

The shock absorber is a Japanese TEIN damping adjustable, soft and hard adjustable, perfectly matched with the airbag. It has installation holes specifically designed for the Alphard 40 series, which do not require modification and can be installed directly, making it very simple.
The air suspension shock absorber tower top adopts SKF pressure bearings, which are quiet, smooth, stable, and have a long service life;
Many modified air suspension suspension suspension rods are directly connected to the top of the tower, which will directly transmit road vibrations and noise to the vehicle body, making drivers feel uncomfortable through the steering wheel. The design of AIRBFT air suspension brand is unique, with a buffering device designed at the top of the suspension tower to reduce the transmission of road vibrations and noise.
